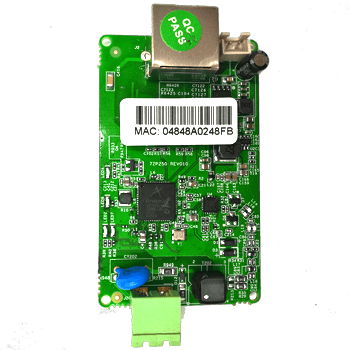

dc24v homplug transmission module with rj45 for pipeline robot

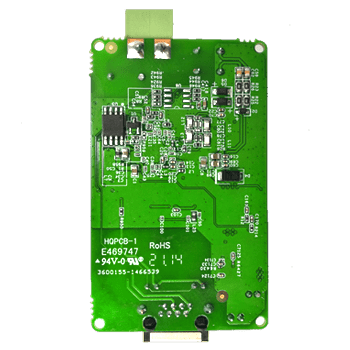

dc24v input homplug module back side for elevator and robot

7ZP250 – AV500 Powerline Module (DC24V)

7ZP250 – AV500 Powerline Module (DC24V)

AV500, size: 72×43.5mm, Input: DC 24V;10/100Mbps Ethernet Port

Category: Powerline Module

Introduction

The main chip of 7ZP250 power communication module adopts Atheros design with standard ethernet ports, as well as the two interfaces of twisted pair and coaxial cable. It can provide up to 500Mbps power line transmission rate, stable work and reliable performance.

The 7ZP250 power communication module provides users with AC power interface, PLC filter interface, general GPIO interface, working status indicator interface and network interface.

Application

1. Elevator Monitor & Diganosing

2. Security Monitoring

3. Access Controller

4. Pipeline Robot

Topography

Features

1. Universal direct current (DC) 24V power input;

2. Support up to 14 nodes；

3. Support IEEE802.3, IEEE802.3u, standard；

4. Support HomePlug AV；

5. Transmission of data through existing power lines, providing up to 500Mbps transmission rate；

6. 10/100Mbps adaptive Ethernet interface；

7. Support 300m transmission distance (within the same meter range) ；

8. Support 128-bit AES encryption to ensure the security of network data transmission；

9. Support any operating system, including Mac, Linux

Specifications
