7LP120 – AV200 Powerline Module (DC3.3V)

7LP120 – AV200 Powerline Module (DC3.3V)

AV200, size: 45*38mm, 8mm Ultra Thin Input: DC3.3V,Support fault self-recovery,Support PLC filtering and lightning protection.





7LP120 is a power line communication module, designed for embedded design application. It is compact, supports both IEEE1901 and Homeplug AV, and is ideal for a number of scenarios, can be integrated in IoT nodes, CCTV cameras, Smart Metering Systems, Energy Managements systems, etc.

7LP120 AV200 power communication module adopts Atheros design as the main chipset. It has the characteristics of high integration and small size. It can provide up to 200Mbps powerline transmission rate, stable operation and reliable performance.

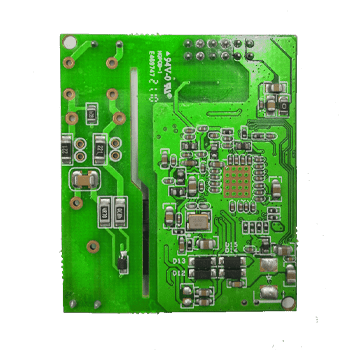

7LP120 is ultra-thin with pin design, the board’s thickness is up to 8mm, suitable for small space PCB motherboard embedding



1. Elevator Monitor & Diganosing

2. Security Monitoring

3. Access Controller

4. Underwater Robot




1. Support up to 8 nodes.

2. Support HomePlug AV standard.

3. 200Mbps Powerline transmission rate.

4. 10/100Mbp adaptive Ethernet interface.u-

5. Support 300m transmission distance (within the same meter range).

6. Support fault self-recovery.

7. Support PLC filtering and lightning protection, customers can choose freely.

8. Flexible application of GPIO interface.

9. Input voltage:  DC3.3V

10. Size:  45x38x8 mm
