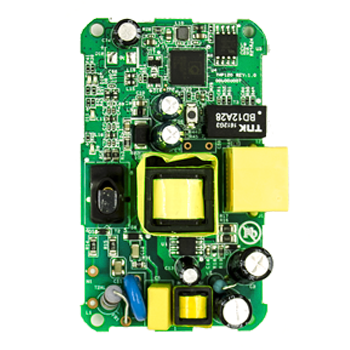

7HP120-PCBA AV200 Powerline Module (AC 110-240V)

7HP120-PCBA AV200 Powerline Module (AC 110-240V)

AV200 homeplug; Input: AC 110-240V;10/100Mbps Ethernet Port




The main chip of 7HP120-PCBA power communication module adopts Atheros design. It has the characteristics of high integration and small size. It can provide up to 200Mbps power line transmission rate, stable work and reliable performance.



1. Elevator Monitor & Diganosing

2. Security Monitoring

3. Access Controller

4. Smart Robot


1. AC110V-240V broad power input;

2. Support up to 7 nodes;

3. Support IEEE802.3, IEEE802.3u, standard;

4. Support HomePlug AV;

5. Transmission of data through existing power lines, providing up to 200Mbps transmission rate;

6. 10/100Mbps adaptive Ethernet interface;

7. Support 300m transmission distance (within the same meter range) ;

8. Support 128-bit AES encryption to ensure the security of network data transmission;

9. Support any operating system, including Mac, Linux


Standards:  Powerline : HomePlug AV

Ethernet : IEEE 802.3 10/100 Auto MDI/MDIX

Energy Saving: EuP Compliance

Protocol:   TCP/IP, IGMP, QoS CSMA/CA

Modulation Technology: OFDM 1024/256/64/16/8 QAM, QPSK, BPSK and

ROBO Modulation Scheme

Data Transfer rate: Up to 200Mbps over powerline

Transmission Range:Up to 300m over powerline

Frequency band: 2Mhz to 30Mhz

Security & Protection: 128-bit AES encryption (enabled with Simple Connect button)

Power Requirement:    AC 100 ~240V, 50~60Hz

Power Consumption: Normal: less than3 Watt

Power save: less than 1 Watt  Average

Operating System: Windows 98SE/ME/2000/2003/XP/Vista, Windows7, Linux, Mac OS

Temperature:   Operating : 0° to 40° C

Non-Operating : -25° to 70° C

Humidity:     Operating:10%~90%, Non-condensing

Non-Operating : 5%~90%, Non-condensing


Physical Interface:

LED Indicators:

1 x Power : Green

1 x Ethernet : Green

1 x Data : Green
